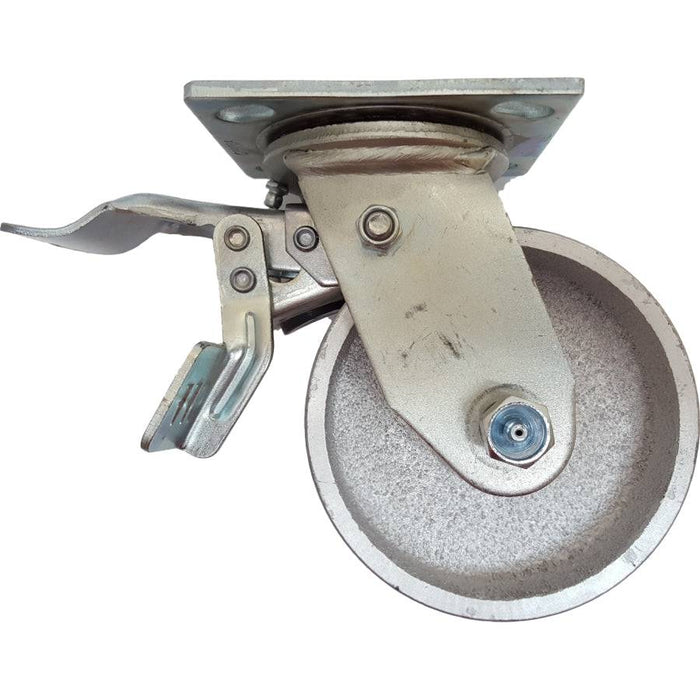

5" x 2" Semi-Steel Wheel Swivel Caster w/ Total Lock Brake - 1000 lbs. Cap.
5" x 2" Semi-Steel Wheel Swivel Caster w/ Total Lock Brake - 1000 lbs. Cap.
Product Overview
Semi-Steel / Cast iron, offers a strong, durable, cost effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.
Tread & Core: Steel Alloy This caster is listed with wheel diameter 5", tread width 2", load capacity 1000 Lbs., tread type Steel Alloy, and bearing type Roller Bearing.
Key Features
- Load Capacity: 1000 Lbs.
- Wheel Diameter: 5"
- Tread Width: 2"
- Tread: Steel Alloy
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 1000 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Steel Alloy wheel or tread
Not Ideal For
Not ideal when the load exceeds 1000 Lbs, the equipment requires a wheel other than 5" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a different brake or lock style is required instead of Dual Pedal Top Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 2" |
| Wheel Color | Silver |
| Load Capacity | 1000 Lbs. |
| Overall Height | 6-1/2" |
| Bearing Type | Roller Bearing |
| Plate Size | 4" x 4-1/2" |
| Lock Type | Dual Pedal Top Lock Brake |
| Model / MPN | DTSS50JS0417YY |
| Tread Type | Steel Alloy |
| Core Type | Steel Alloy |
| Swivel Radius | 5" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Tensile Strength | 30,000 PSI |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Dual Pedal Top Lock Brake.
