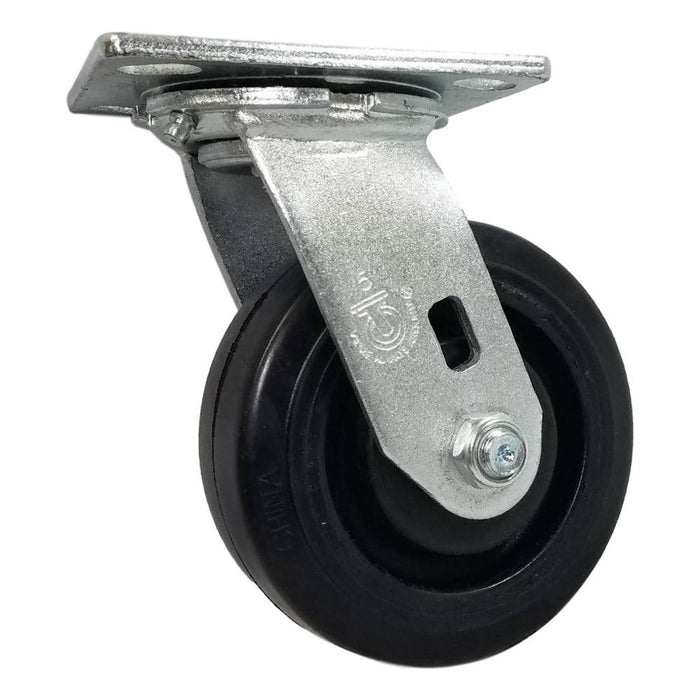

5" x 2" Rubber On Nylon Swivel Caster (Precision Bearing) - 450 lbs. Cap.
5" x 2" Rubber On Nylon Swivel Caster (Precision Bearing) - 450 lbs. Cap.
Product Overview
Rust free and suitable for wash down, high humidity, and outdoor environments. The nylon core is designed to increase load and impact capacities while the rubber tread offers shock absorbing cushioned ride allowing it to roll over debris easily and quietly without damaging floor surfaces.
Tread: Rubber Tread Vulcanized Core This caster is listed with wheel diameter 5", tread width 2", load capacity 450 Lbs., tread type Rubber Vulcanized Core, and bearing type Ball Bearing.
Key Features
- Load Capacity: 450 Lbs.
- Wheel Diameter: 5"
- Tread Width: 2"
- Tread: Rubber Vulcanized Core
- Bearing: Ball Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 450 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Rubber Vulcanized Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 450 Lbs, the equipment requires a wheel other than 5" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 2" |
| Wheel Color | Black |
| Load Capacity | 450 Lbs. |
| Overall Height | 6-1/2" |
| Bearing Type | Ball Bearing |
| Plate Size | 4" x 4-1/2" |
| Tread Type | Rubber Vulcanized Core |
| Core Type | Nylon |
| Swivel Radius | 4" |
| Bolt Hole Pattern | 2-5/8" 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore A 80 (+/-5) |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 27NR50JB6017YY | Four-Position Swivel Lock: Standard |
| 27NR50JB6017PY | Four-Position Swivel Lock: Add 4-Position Swivel Lock |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Ball Bearing.
