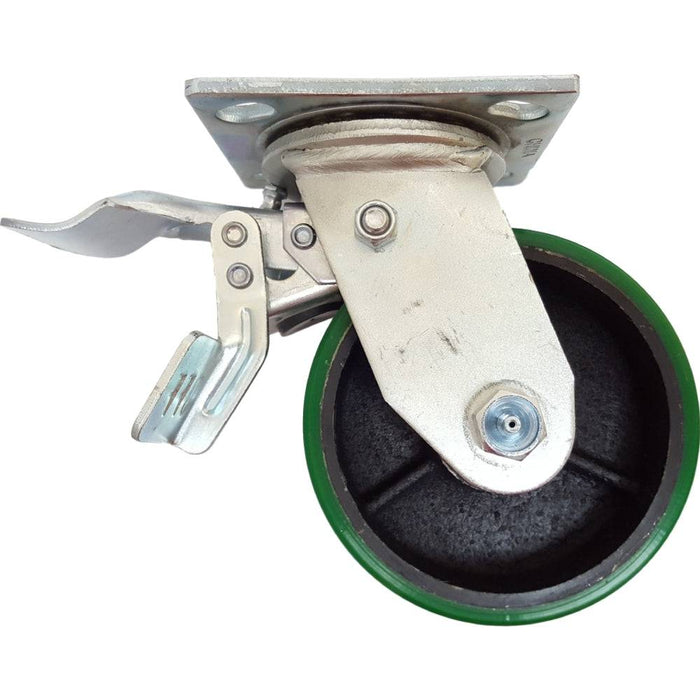

5" x 2" Polyon Cast Swivel Caster w/ Dual Petal Total Lock Brake - 1100 lbs. Cap.
5" x 2" Polyon Cast Swivel Caster w/ Dual Petal Total Lock Brake - 1100 lbs. Cap.
Product Overview
Polyurethane elastomer tread chemically bonded to a cast iron core. These wheels are somewhat heavy and are ideal for warehouses with concrete and hardwood flooring.
Tread: Polyurethane Elastomer This caster is listed with wheel diameter 5", tread width 1-1/4", load capacity 1,100 Lbs., tread type Polyurethane Elastomer, and bearing type Roller Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 1,100 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: Polyurethane Elastomer
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 1,100 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Polyurethane Elastomer wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,100 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a different brake or lock style is required instead of Dual Pedal Lock.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Wheel Color | Green and Black |
| Load Capacity | 1,100 Lbs. |
| Overall Height | 6-1/2" |
| Bearing Type | Roller Bearing |
| Plate Size | 4" x 4-1/2" |
| Lock Type | Dual Pedal Lock |
| Model / MPN | DTPU50JG0417YY |
| Tread Type | Polyurethane Elastomer |
| Core Type | Cast Iron |
| Swivel Radius | 5" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore A 95 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Dual Pedal Lock.
