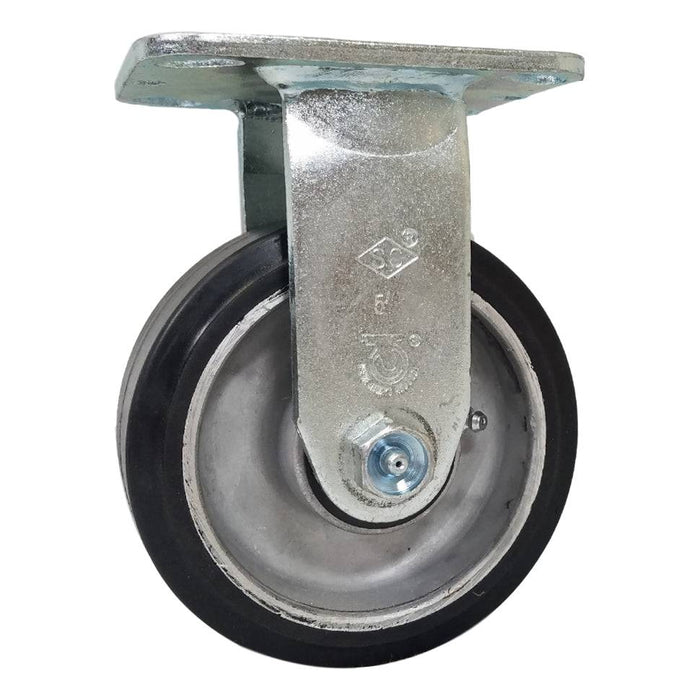

5" x 2" Mold-On Rubber Aluminum Wheel Rigid Caster - 500 lbs. Capacity
5" x 2" Mold-On Rubber Aluminum Wheel Rigid Caster - 500 lbs. Capacity
Product Overview
The mold-on rubber aluminum wheel is a lightweight alternative to the traditional cast iron core, providing the same load capacity with a cushioned tread and an attractive look.
Tread: Rubber, Vulcanized To Core This caster is listed with wheel diameter 5", tread width 2", load capacity 500 Lbs., tread type Rubber, Vulcanized To Core, and bearing type Roller Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 500 Lbs.
- Wheel Diameter: 5"
- Tread Width: 2"
- Tread: Rubber, Vulcanized To Core
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3"x3" bolt-hole pattern
- Loads within the listed 500 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3"x3" bolt-hole pattern
- Applications needing the listed Rubber, Vulcanized To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 500 Lbs, the equipment requires a wheel other than 5" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3"x3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 500 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 2" |
| Tread Type | Rubber, Vulcanized To Core |
| Core Type | Aluminum |
| Bearing Type | Roller Bearing |
| Wheel Color | Black and Silver |
| Overall Height | 6" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3"x3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore A 80 (+/-5) |
| Temperature Range | -40° F to 160° F |
| Model / MPN | 28RA50JB0417YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3"x3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -40° F to 160° F.
