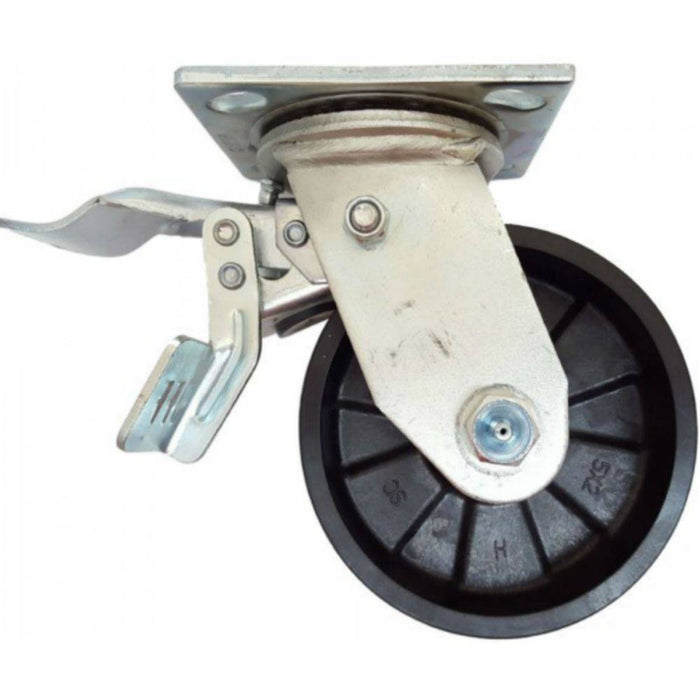

5" x 2" MaxRok Wheel Swivel Caster W/ Dual-Pedal Lock Brake - 1000 lbs. Capacity
5" x 2" MaxRok Wheel Swivel Caster W/ Dual-Pedal Lock Brake - 1000 lbs. Capacity
Product Overview
Maxrok wheels are made from glass-filled nylon, providing incredible impact strength and a fairly high load capacity for the weight and price. The hard tread does not provide floor protection, but these wheels excel in outdoor applications. The nylon compound is resistant to grease, oil, and most chemical and cleaning solutions.
Tread & Core: Glass-Filled Nylon This caster is listed with wheel diameter 5", tread width 2", load capacity 1,000 Lbs., tread type Glass-Filled Nylon, and bearing type Roller Bearing.
Key Features
- Load Capacity: 1,000 Lbs.
- Wheel Diameter: 5"
- Tread Width: 2"
- Tread: Glass-Filled Nylon
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 1,000 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Glass-Filled Nylon wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,000 Lbs, the equipment requires a wheel other than 5" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a different brake or lock style is required instead of Dual-Pedal Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 2" |
| Wheel Color | Black |
| Load Capacity | 1,000 Lbs. |
| Overall Height | 6-1/2" |
| Bearing Type | Roller Bearing |
| Plate Size | 4" x 4-1/2" |
| Lock Type | Dual-Pedal Lock Brake |
| Model / MPN | DTMA50JB0417YY |
| Tread Type | Glass-Filled Nylon |
| Core Type | Glass-Filled Nylon |
| Swivel Radius | 4" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore D 85 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Dual-Pedal Lock Brake.
