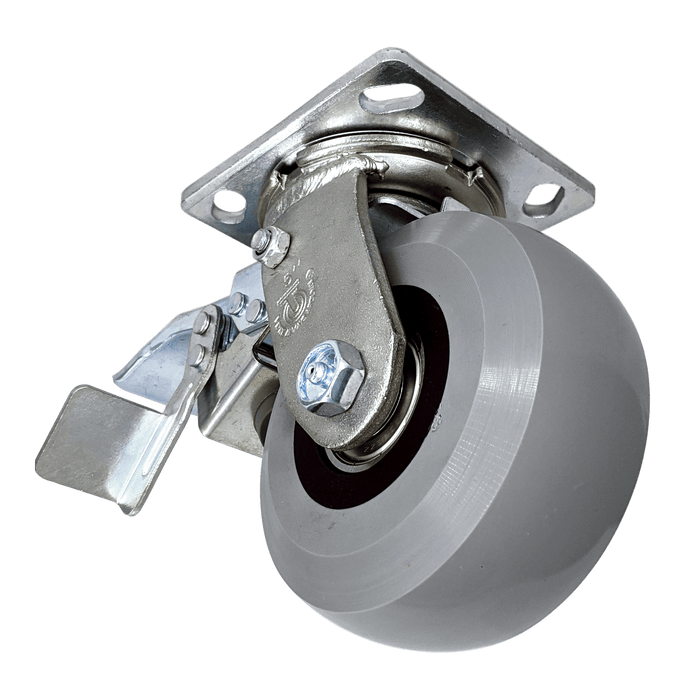

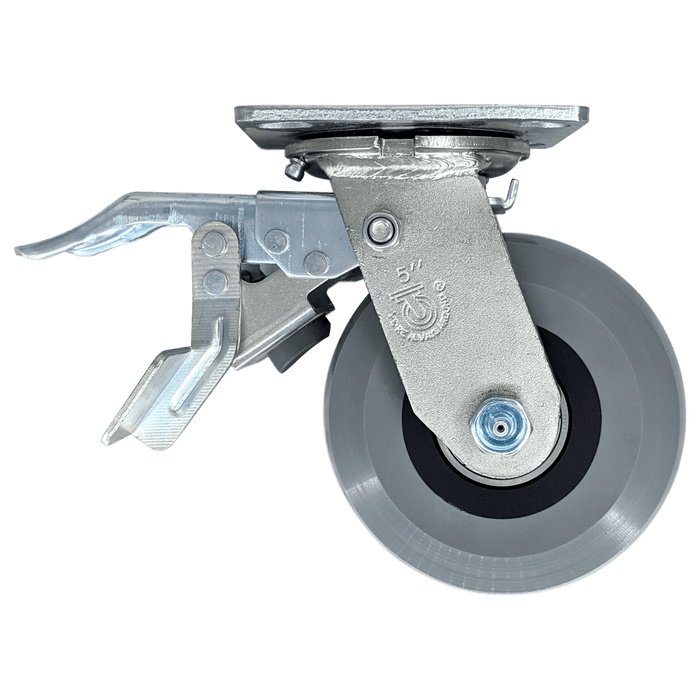

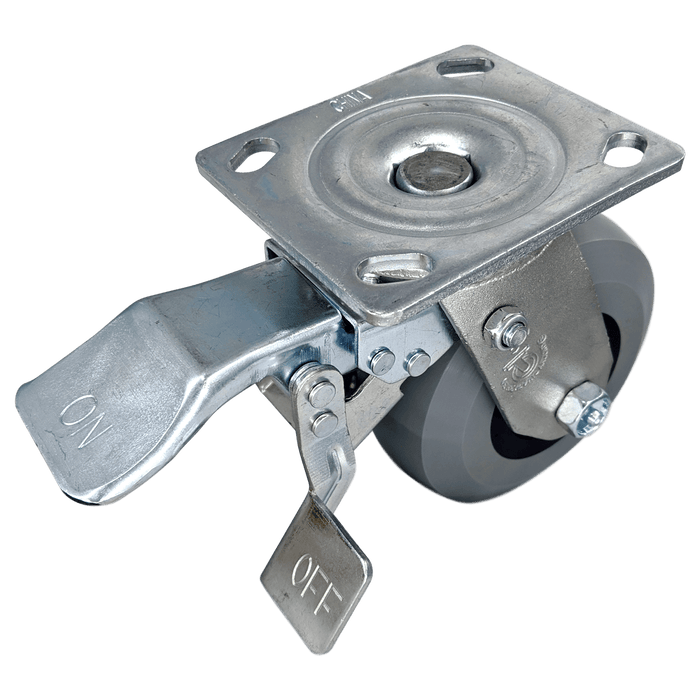

5" x 2" Ergolastomer Swivel Caster w/ Dual-Pedal Lock Brake - 1,250 lbs. Cap.
5" x 2" Ergolastomer Swivel Caster w/ Dual-Pedal Lock Brake - 1,250 lbs. Cap.
Product Overview
The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.
Tread: Solid Cast Polyurethane Elastomer, Non-Marking This caster is listed with wheel diameter 5", tread width 2", load capacity 1,250 Lbs., tread type Solid Cast Polyurethane Elastomer, Non-Marking, and bearing type Sealed Precision Bearing.
Key Features
- Load Capacity: 1,250 Lbs.
- Wheel Diameter: 5"
- Tread Width: 2"
- Tread: Solid Cast Polyurethane Elastomer, Non-Marking
- Bearing: Sealed Precision Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3 x 3" bolt-hole pattern
- Loads within the listed 1,250 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3 x 3" bolt-hole pattern
- Applications needing the listed Solid Cast Polyurethane Elastomer, Non-Marking wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,250 Lbs, the equipment requires a wheel other than 5" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3 x 3" bolt-hole pattern, or a different brake or lock style is required instead of Dual Pedal Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 2" |
| Wheel Color | Gray |
| Load Capacity | 1,250 Lbs. |
| Overall Height | 6-1/2" |
| Bearing Type | Sealed Precision Bearing |
| Plate Size | 4" x 4-1/2" |
| Lock Type | Dual Pedal Lock Brake |
| Model / MPN | DTHU50JI6417YY |
| Tread Type | Solid Cast Polyurethane Elastomer, Non-Marking |
| Core Type | Glass Filled Nylon Bearing Collar |
| Swivel Radius | 5" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3 x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore D 68 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3 x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Dual Pedal Lock Brake.
