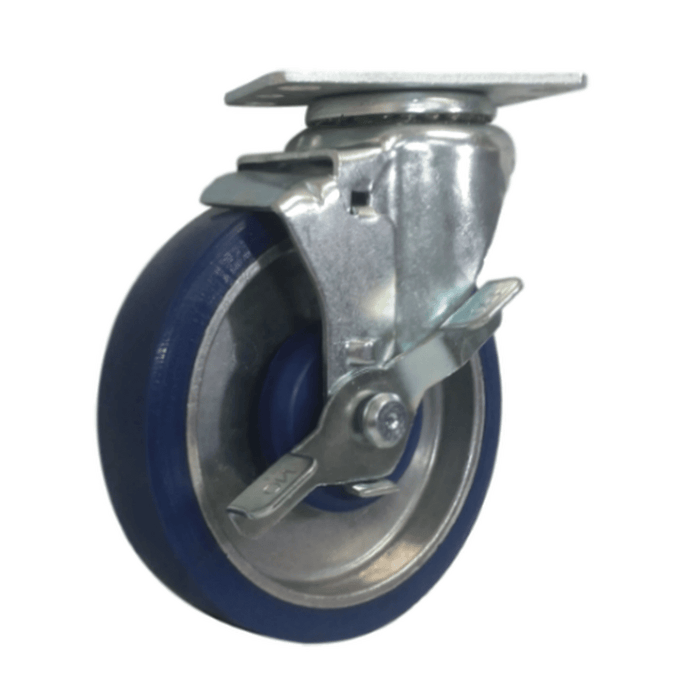

5" x 1-1/4" Polyon Aluminum Swivel Caster w/ Top Lock Brake - 350 lbs. Cap.
5" x 1-1/4" Polyon Aluminum Swivel Caster w/ Top Lock Brake - 350 lbs. Cap.
Product Overview
Polyurethane elastomer tread chemically bonded to an aluminum core. Aluminum core has a strong attractive appearance, is lightweight and resistant to rust and corrosion.
Tread: Polyurethane Elastomer This caster is listed with wheel diameter 5", tread width 1-1/4", load capacity 350 Lbs., tread type Polyurethane Elastomer, and bearing type Ball Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 350 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: Polyurethane Elastomer
- Bearing: Ball Bearing
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Loads within the listed 350 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Applications needing the listed Polyurethane Elastomer wheel or tread
Not Ideal For
Not ideal when the load exceeds 350 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern, or a different brake or lock style is required instead of Top Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Wheel Color | Blue and Silver |
| Load Capacity | 350 Lbs. |
| Overall Height | 6-1/8" |
| Bearing Type | Ball Bearing |
| Plate Size | 2-3/8" x 3-5/8" |
| Lock Type | Top Lock Brake |
| Model / MPN | 75PA50GL4306TY |
| Tread Type | Polyurethane Elastomer |
| Core Type | Aluminum |
| Swivel Radius | 4" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore A 95 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Top Lock Brake.
