5" X 1-1/4" Mold-On Rubber Aluminum Swivel Caster, Total-Lock Brake - 375 lbs. Cap.
5" X 1-1/4" Mold-On Rubber Aluminum Swivel Caster, Total-Lock Brake - 375 lbs. Cap.
Product Overview

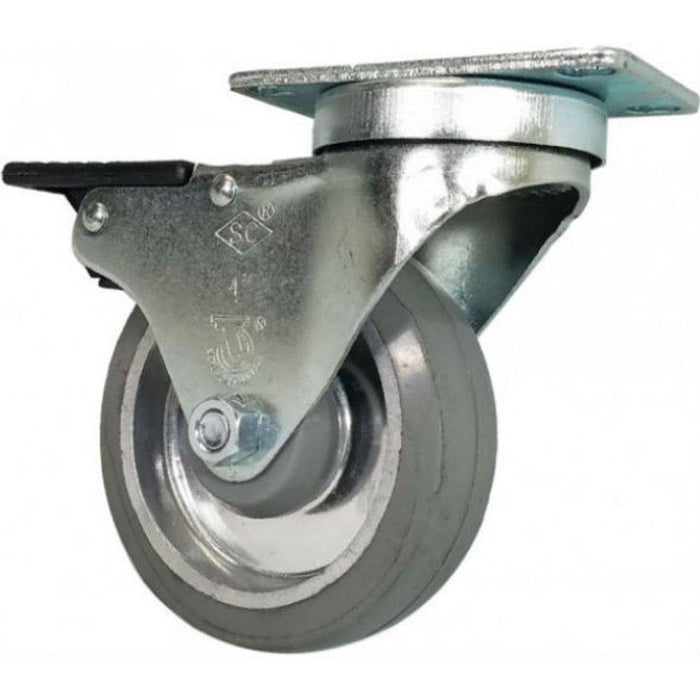

5" x 1-1/4" Rubber on Aluminum Wheel Swivel Caster with Total Lock Brake
The mold-on rubber aluminum wheel is a lightweight alternative to the traditional cast iron core, providing the same load capacity with a cushioned tread and an attractive look. This caster is listed with wheel diameter 5", tread width 1-1/4", load capacity 375 Lbs., tread type Rubber, Vulcanized To Core, and bearing type Ball Bearing.
Key Features
- Load Capacity: 375 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: Rubber, Vulcanized To Core
- Bearing: Ball Bearing
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Loads within the listed 375 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Applications needing the listed Rubber, Vulcanized To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 375 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern, or a different brake or lock style is required instead of Total Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Wheel Color | Gray |
| Load Capacity | 375 Lbs. |
| Overall Height | 6-1/4" |
| Bearing Type | Ball Bearing |
| Plate Size | 2-3/8" x 3-5/8" |
| Lock Type | Total Lock Brake |
| Model / MPN | T3RA50GI4306YY |
| Tread Type | Rubber, Vulcanized To Core |
| Core Type | Aluminum |
| Swivel Radius | 4-7/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore A 80 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Total Lock Brake.
