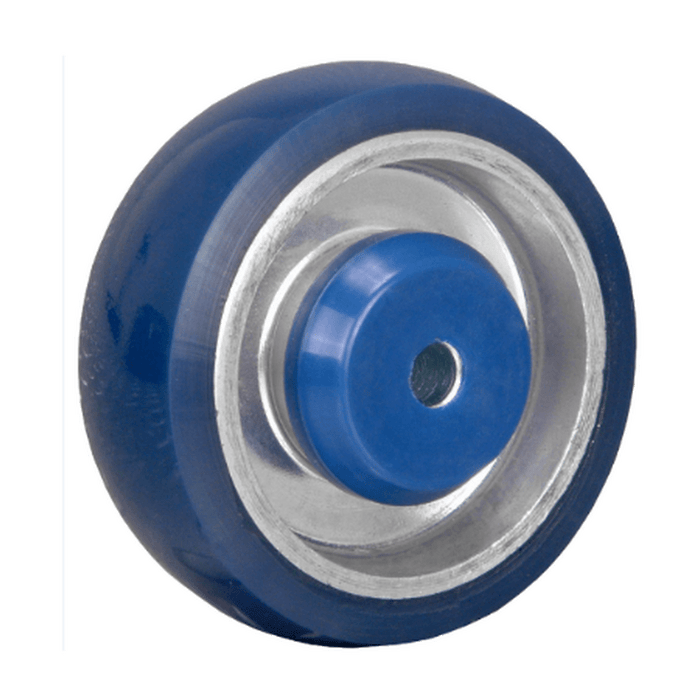

4" x 1-1/4" Polyon Aluminum Wheel Blue/Silver - 380 lbs. Capacity
4" x 1-1/4" Polyon Aluminum Wheel Blue/Silver - 380 lbs. Capacity
Product Overview
Polyurethane elastomer tread is chemically bonded to an aluminum core. The aluminum core has a strong attractive appearance, is lightweight, and is resistant to rust and corrosion.
Tread: Polyurethane Elastomer This replacement wheel is listed with wheel diameter 4", tread width 1-1/4", load capacity 380 Lbs., tread type Polyurethane Elastomer, and bearing type Annular Ball Bearing W/ Bearing Guards. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 380 Lbs.
- Wheel Diameter: 4"
- Tread Width: 1-1/4"
- Tread: Polyurethane Elastomer
- Bearing: Annular Ball Bearing W/ Bearing Guards
- Temperature Range: -45° F to 180° F
Ideal For
Choose this product if you need:
- A replacement wheel matching the listed 4" diameter and 1-1/4" tread width
- Loads within the listed 380 Lbs rating
- Applications matching the listed 4" x 1-1/4" wheel dimensions
- Applications needing the listed Polyurethane Elastomer wheel or tread
Not Ideal For
Not ideal when the load exceeds 380 Lbs, the equipment requires a wheel other than 4" diameter by 1-1/4" tread width, the axle or bearing requirement does not match Annular Ball Bearing W/ Bearing Guards, or the operating temperature is outside -45° F to 180° F.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, and temperature range match the wheel required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 380 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 1-1/4" |
| Tread Type | Polyurethane Elastomer |
| Core Type | Aluminum |
| Axle / Bore Diameter | 3/8" |
| Hub Length | 1-9/16" |
| Bearing Type | Annular Ball Bearing W/ Bearing Guards |
| Color | Blue/Silver |
| Durometer | Shore A 95 (+/-5) |
| Temperature Range | -45° F to 180° F |
| Model / MPN | PA40GL43 |
Frequently Asked Questions
What is this product used for?
Use it when you need a replacement wheel matching the listed 4" diameter and 1-1/4" tread width.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -45° F to 180° F.
