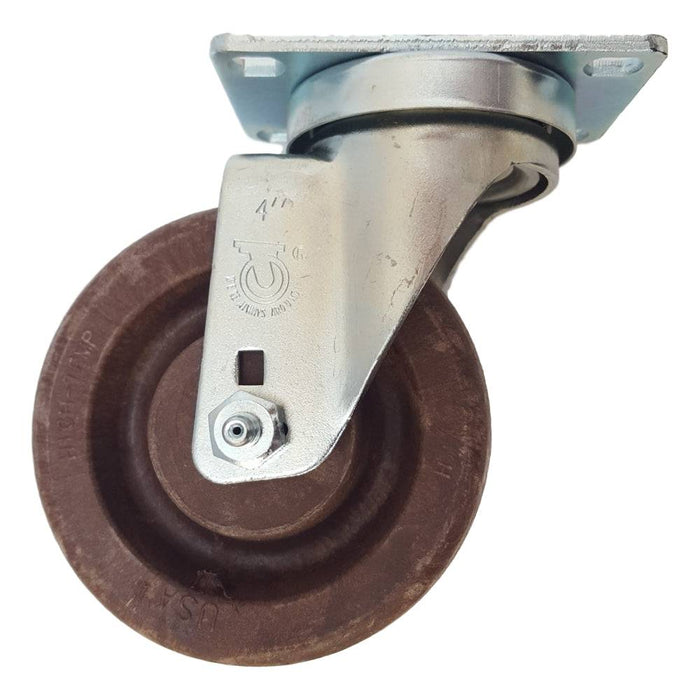

4" x 1-1/2" High Temp. Brimstone Wheel Swivel Caster - 350 lbs. capacity
4" x 1-1/2" High Temp. Brimstone Wheel Swivel Caster - 350 lbs. capacity
Product Overview
Brimstone wheels are made out of an exclusively engineered thermo compound designed for high temperature, autoclave, and steam cleaning wash-down applications. They provide excellent resistance to oil, grease, salt, and most acids, chemicals, and cleaning solutions.
Tread & Core: Solid Cast Thermo Compound This caster is listed with wheel diameter 4", tread width 1-1/2", load capacity 350 Lbs., tread type Solid Cast Thermo Compound, and bearing type Sleeve Bearing.
Key Features
- Load Capacity: 350 Lbs.
- Wheel Diameter: 4"
- Tread Width: 1-1/2"
- Tread: Solid Cast Thermo Compound
- Bearing: Sleeve Bearing
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and - 2-3/8" x 3-5/8" (06 plate) - 3-1/8" x 4-1/8" (11 plate) - 4" x 4-1/2" (17 plate) plate with - 1-3/4" x 2-7/8" to 1-3/4" x 3" (06 plate) - 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" (11 plate) - 2-5/8" x 3-5/8" to 3" x 3" (17 plate) bolt-hole pattern
- Loads within the listed 350 Lbs rating
- Equipment using the listed - 2-3/8" x 3-5/8" (06 plate) - 3-1/8" x 4-1/8" (11 plate) - 4" x 4-1/2" (17 plate) plate with - 1-3/4" x 2-7/8" to 1-3/4" x 3" (06 plate) - 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" (11 plate) - 2-5/8" x 3-5/8" to 3" x 3" (17 plate) bolt-hole pattern
- Applications needing the listed Solid Cast Thermo Compound wheel or tread
Not Ideal For
Not ideal when the load exceeds 350 Lbs, the equipment requires a wheel other than 4" diameter by 1-1/2" tread width, the mounting does not match the listed - 2-3/8" x 3-5/8" (06 plate) - 3-1/8" x 4-1/8" (11 plate) - 4" x 4-1/2" (17 plate) plate with - 1-3/4" x 2-7/8" to 1-3/4" x 3" (06 plate) - 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" (11 plate) - 2-5/8" x 3-5/8" to 3" x 3" (17 plate) bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 4" |
| Tread Width | 1-1/2" |
| Wheel Color | Brown |
| Load Capacity | 350 Lbs. |
| Overall Height | 5-1/8" |
| Bearing Type | Sleeve Bearing |
| Tread Type | Solid Cast Thermo Compound |
| Core Type | Solid Cast Thermo Compound |
| Swivel Radius | 3-13/32" |
| Bolt Hole Pattern | - 1-3/4" x 2-7/8" to 1-3/4" x 3" (06 plate) - 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" (11 plate) - 2-5/8" x 3-5/8" to 3" x 3" (17 plate) |
| Bolt Hole Diameter | - 5/16" (06 plate) - 3/8" (11 plate) - 3/8" (17 plate) |
| Durometer | Shore D 85 (+/-5) |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 75GN40HQ9006YZ | Plate Size: 2-3/8" x 3-5/8" plate |
| 75GN40HQ9011YZ | Plate Size: 3-1/8" x 4-1/8" plate |
| 75GN40HQ9017YZ | Plate Size: 4" x 4-1/2" plate |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and - 2-3/8" x 3-5/8" (06 plate) - 3-1/8" x 4-1/8" (11 plate) - 4" x 4-1/2" (17 plate) plate with - 1-3/4" x 2-7/8" to 1-3/4" x 3" (06 plate) - 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" (11 plate) - 2-5/8" x 3-5/8" to 3" x 3" (17 plate) bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Sleeve Bearing.
