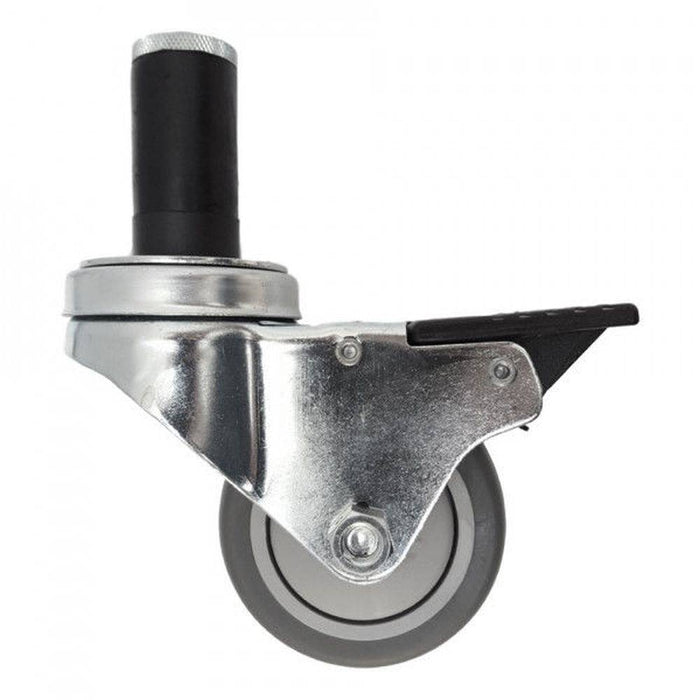

3" x 1-1/4" Thermo-Pro Thread Stem Caster,Exp Adapter,Total Lock Brake 210 lbs. Capacity
3" x 1-1/4" Thermo-Pro Thread Stem Caster,Exp Adapter,Total Lock Brake 210 lbs. Capacity
Product Overview
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile, and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
Tread: Non-Marking Thermoplastic Rubber This replacement caster component is listed with wheel diameter 3", tread width 1-1/4", load capacity 210 Lbs., tread type Non-Marking Thermoplastic Rubber, and bearing type Precision Bearing W/ Full Thread Guards.
Key Features
- Load Capacity: 210 Lbs.
- Wheel Diameter: 3"
- Tread Width: 1-1/4"
- Tread: Non-Marking Thermoplastic Rubber
- Bearing: Precision Bearing W/ Full Thread Guards
- Lock Or Brake: Total Lock
Ideal For
Choose this product if you need:
- A replacement caster component matching the listed mounting and hardware dimensions
- Loads within the listed 210 Lbs rating
- Equipment using the listed - 3/4" Tube Inner Diameter (0.720" - 0.851") - 7/8" Tube Inner Diameter (0.852" - 0.927") - 1" Tube Inner Diameter (0.928" - 1.029") - 1-1/8" Tube Inner Diameter (1.030" - 1.140") - 1-3/8" Tube Inner Diameter (1.360" - 1.425") - 1-1/2" Tube Inner Diameter (1.426" - 1.589") - 1-7/8" Tube Inner Diameter (1.790" - 1.850") stem or adapter
- Applications needing the listed Non-Marking Thermoplastic Rubber wheel or tread
Not Ideal For
Not ideal when a complete caster with wheel is required, the load exceeds 210 Lbs, the equipment requires a wheel other than 3" diameter by 1-1/4" tread width, or the mounting does not match the listed - 3/4" Tube Inner Diameter (0.720" - 0.851") - 7/8" Tube Inner Diameter (0.852" - 0.927") - 1" Tube Inner Diameter (0.928" - 1.029") - 1-1/8" Tube Inner Diameter (1.030" - 1.140") - 1-3/8" Tube Inner Diameter (1.360" - 1.425") - 1-1/2" Tube Inner Diameter (1.426" - 1.589") - 1-7/8" Tube Inner Diameter (1.790" - 1.850") stem or adapter.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, adapter size, and overall height match the replacement component required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 210 Lbs. |
| Wheel Diameter | 3" |
| Tread Width | 1-1/4" |
| Tread Type | Non-Marking Thermoplastic Rubber |
| Core Type | Solid Polyolefin |
| Bearing Type | Precision Bearing W/ Full Thread Guards |
| Wheel Color | Gray/Gray |
| Overall Height | 4-1/8" |
| Swivel Radius | 4-7/8" |
| Lock Type | Total Lock |
| Durometer | Shore A 75 (+/-5) |
| Temperature Range | -20° F to 180° F |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| T3TP30GI4473YY | Adapter Size: 1" Tube I.D. |
| T3TP30GI4472YY | Adapter Size: 7/8" Tube I.D. |
| T3TP30GI4471YY | Adapter Size: 3/4" Tube I.D. |
| T3TP30GI4474YY | Adapter Size: 1-1/8" Tube I.D. |
| T3TP30GI4476YY | Adapter Size: 1-1/2" Tube I.D. |
| T3TP30GI4477YY | Adapter Size: 1-7/8" Tube I.D. |
Frequently Asked Questions
What is this product used for?
Use it when you need a replacement caster component matching the listed mounting and hardware dimensions.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Total Lock.
