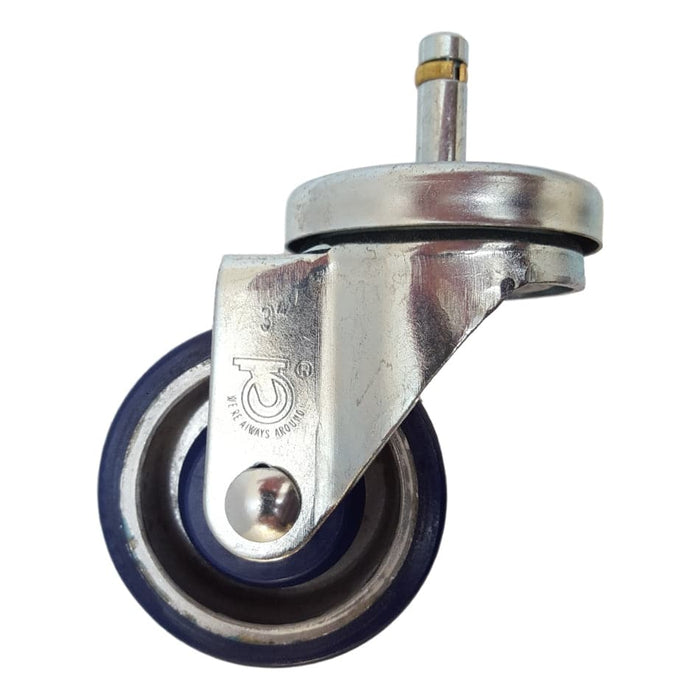

3" x 1-1/4" Polyon Aluminum Wheel Swivel Grip Ring Stem Caster - 350 lbs. Cap.
3" x 1-1/4" Polyon Aluminum Wheel Swivel Grip Ring Stem Caster - 350 lbs. Cap.
Product Overview
Polyurethane elastomer tread is chemically bonded to an aluminum core. The aluminum core has a strong attractive appearance, is lightweight, and is resistant to rust and corrosion.
Tread: Polyurethane Elastomer This caster is listed with wheel diameter 3", tread width 1-1/4", load capacity 350 Lbs., tread type Polyurethane Elastomer, and bearing type Annular Ball Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 350 Lbs.
- Wheel Diameter: 3"
- Tread Width: 1-1/4"
- Tread: Polyurethane Elastomer
- Bearing: Annular Ball Bearing
- Stem: 7/16" x 1-3/8" Grip Stem
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 7/16" x 1-3/8" grip stem stem or adapter
- Loads within the listed 350 Lbs rating
- Equipment using the listed 7/16" x 1-3/8" Grip Stem stem or adapter
- Applications needing the listed Polyurethane Elastomer wheel or tread
Not Ideal For
Not ideal when the load exceeds 350 Lbs, the equipment requires a wheel other than 3" diameter by 1-1/4" tread width, the mounting does not match the listed 7/16" x 1-3/8" Grip Stem stem or adapter, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, stem size, and overall height match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 350 Lbs. |
| Wheel Diameter | 3" |
| Tread Width | 1-1/4" |
| Tread Type | Polyurethane Elastomer |
| Core Type | Aluminum |
| Bearing Type | Annular Ball Bearing |
| Wheel Color | Blue/Silver |
| Overall Height | 4" |
| Swivel Radius | 3" |
| Stem Size | 7/16" x 1-3/8" Grip Stem |
| Durometer | Shore A 95 (+/-5) |
| Temperature Range | -40° F to 180° F |
| Model / MPN | 21PA30GL4391YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 7/16" x 1-3/8" Grip Stem stem or adapter.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -40° F to 180° F.
